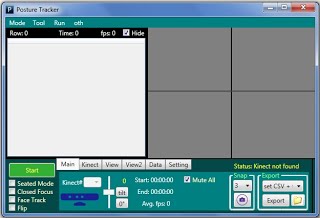

• Button "Start/Stop": press once to start connecting a sensor, then use this button to start/stop data collection
  • If you see running numbers, data is being collected
  • As long as you see depth image, the middleware is working (regardless of this button status)

Data Collection

• Button "Export": click this button to export the data
  • Exported data is .csv and can be opened by MS Excel
• Button image="Folder": open save directory
• Button image="Camera": take snapshot

Special Features by Kinect: checkboxs under Button "Start/Stop"

• Checkbox "Seated Mode": track only upper-body
• Checkbox "Closed Focus": near mode (when range <= 1.5m)
• Checkbox "Face Track": run facial data
• Checkbox "Flip": mirror view

Menu Bar

• Mode: One click button for auto setting (UKI, OWS, Full Screen, etc.)
• Tool: In case you want to run UKI or else manually
• Run: CCTV is available

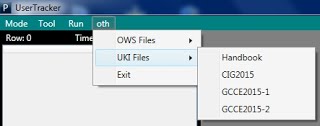

• oth: handbooks

Tab

• Main: set camera tilt angle, turn audio on/off
• Kinect: enable skeleton data smoothing

• View: There are 4 screen, you can set what to be shown on each of them
• View2: set Depth/Color data quality
  • Chroma Key: remove a background

• Data
  • Set number of digits for collected data(others menus are rarely used)
  • Setting for showing multiple skeletons, how to determine the main skeleton
  • During data collecting, data are backed up every a given period of time (temp.csv)
• Setting: save configurations & settings

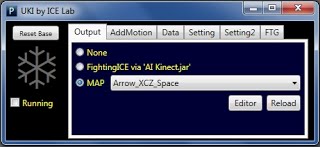

A panel for detecting motions, simulating key strokes and mouse click events, and sending inputs to a target application.

Run

• Run with recommended setting: From Posture Tracker, click menu bar "Mode," then "Universal Middleware"
• Run manually (open UKI panel only): From Posture Tracker, click menu bar "Tool," then "UKI Panel"

Basic Use

• Start/Stop
  • Start/Stop by Salute Motions
  • Start/Stop by checkbox "Running"
• Button "Reset Base": to register new Base Posture

Tab

• Output
  • Radio box "None": Not send output
  • Radio box "FightingICE": Sending a command to AI in FightingICE directly (specific use)
  • Radio box "MAP": Process data and send output base on a MAP file
• AddMotion: To recognize a motion by performing it (instead of manually writing detection rules)
• Data: For data collection
  • Marker: Use in data collection for marking start and end points of a motion.
  • Icon will change to number and countdown.
    E.g. See example in Dataset
  • Checkbox "Collect Data":When this checkbox is checked and UKI is running, data will be collect
  • Group "Auto Save": A shortcut for stop data collection (Collect data and stop UKI)
• Setting: Turn on/off command postures. Auto on/off base on the user's range.
  • Data Collection Buffer: Add buffer to the detection, to reduce workload on processing
• Setting2: (specific use)
• FTG: use when sending Tab:Output/Output = FightingICE
